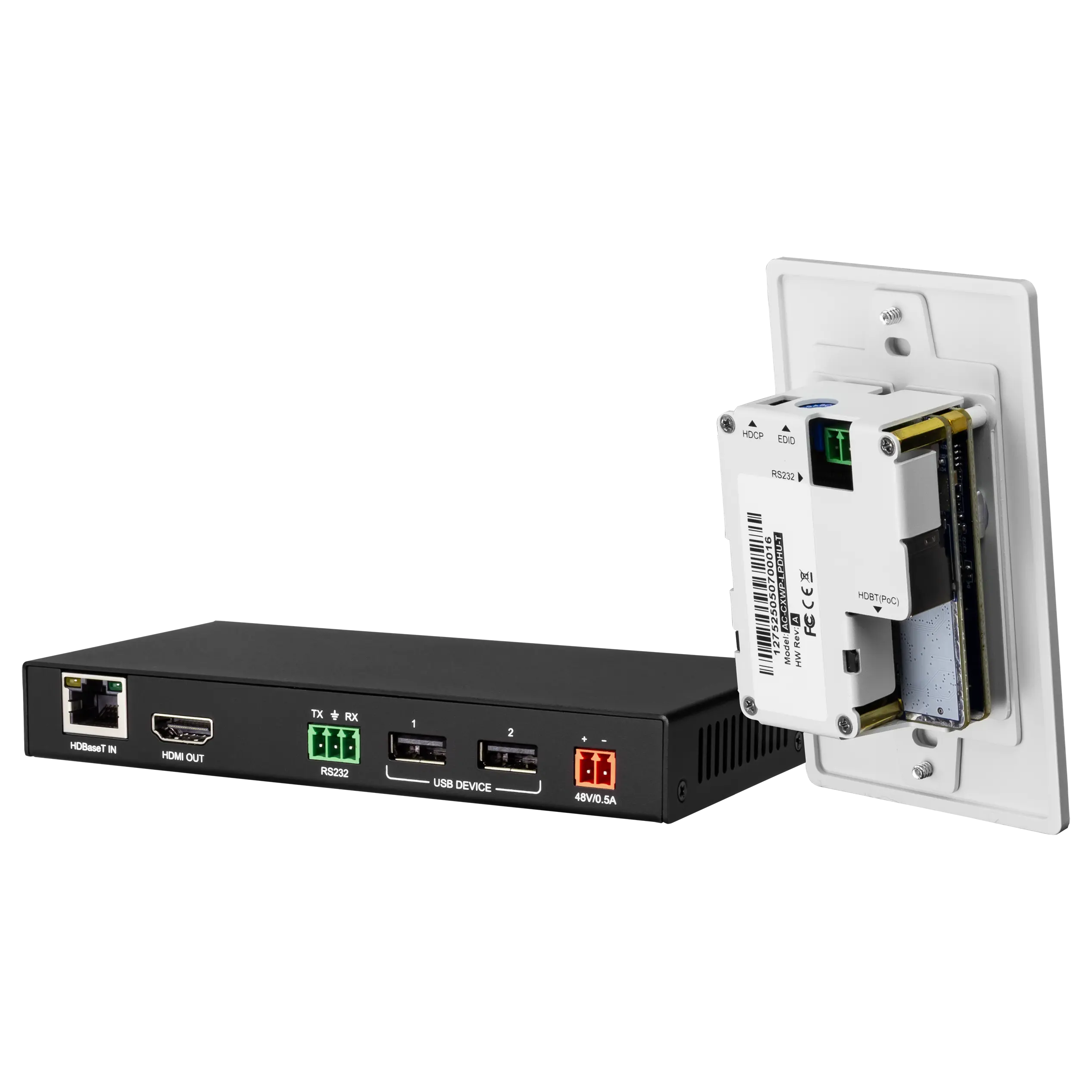

The AC-CXWP-LPDHU family from AVPro Edge’s ConferX line of professional products is an HDMI and USB Type-C dual-input, HDBaseT signal transport low-profile wall plate system designed for trouble-free installation into a standard single-gang workbox.

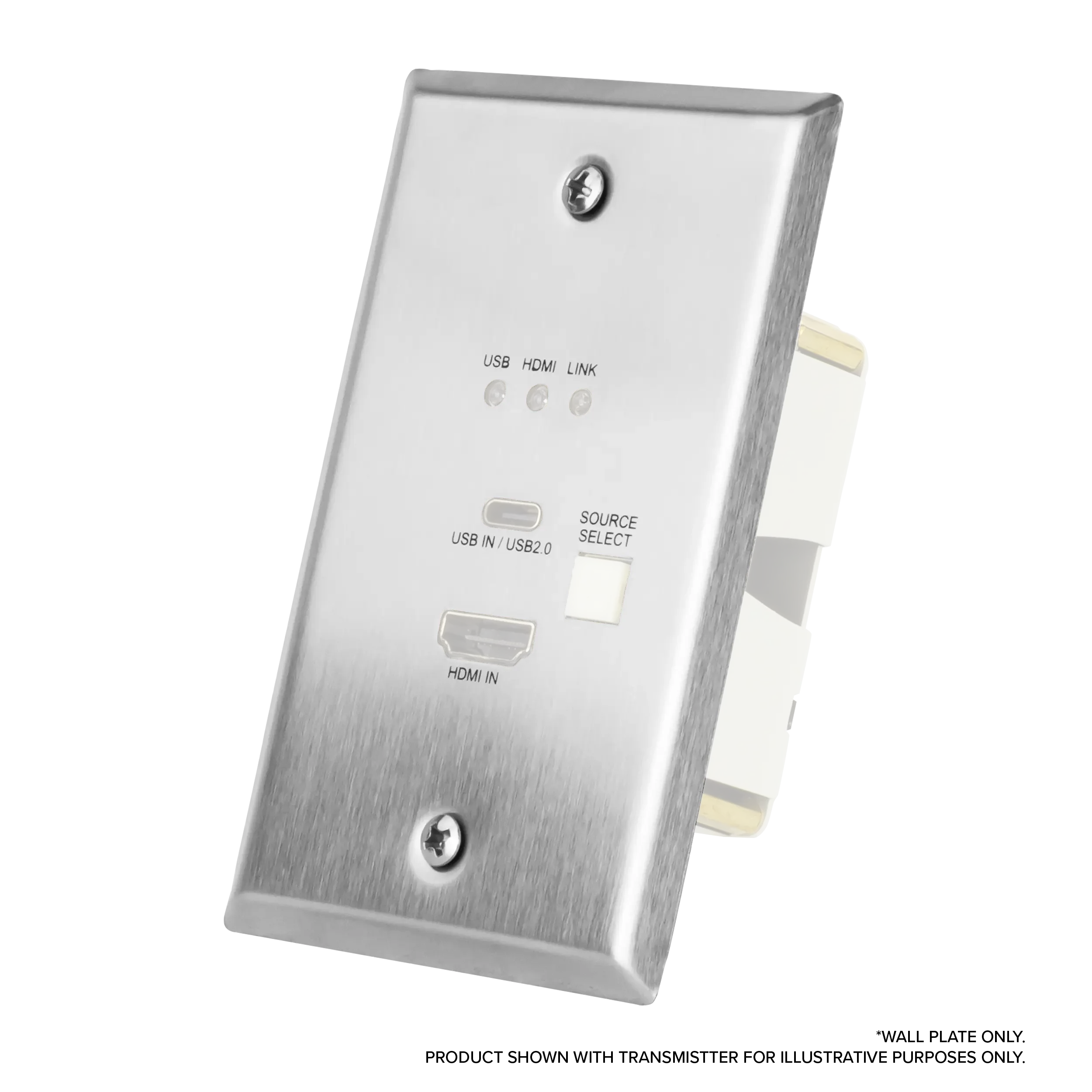

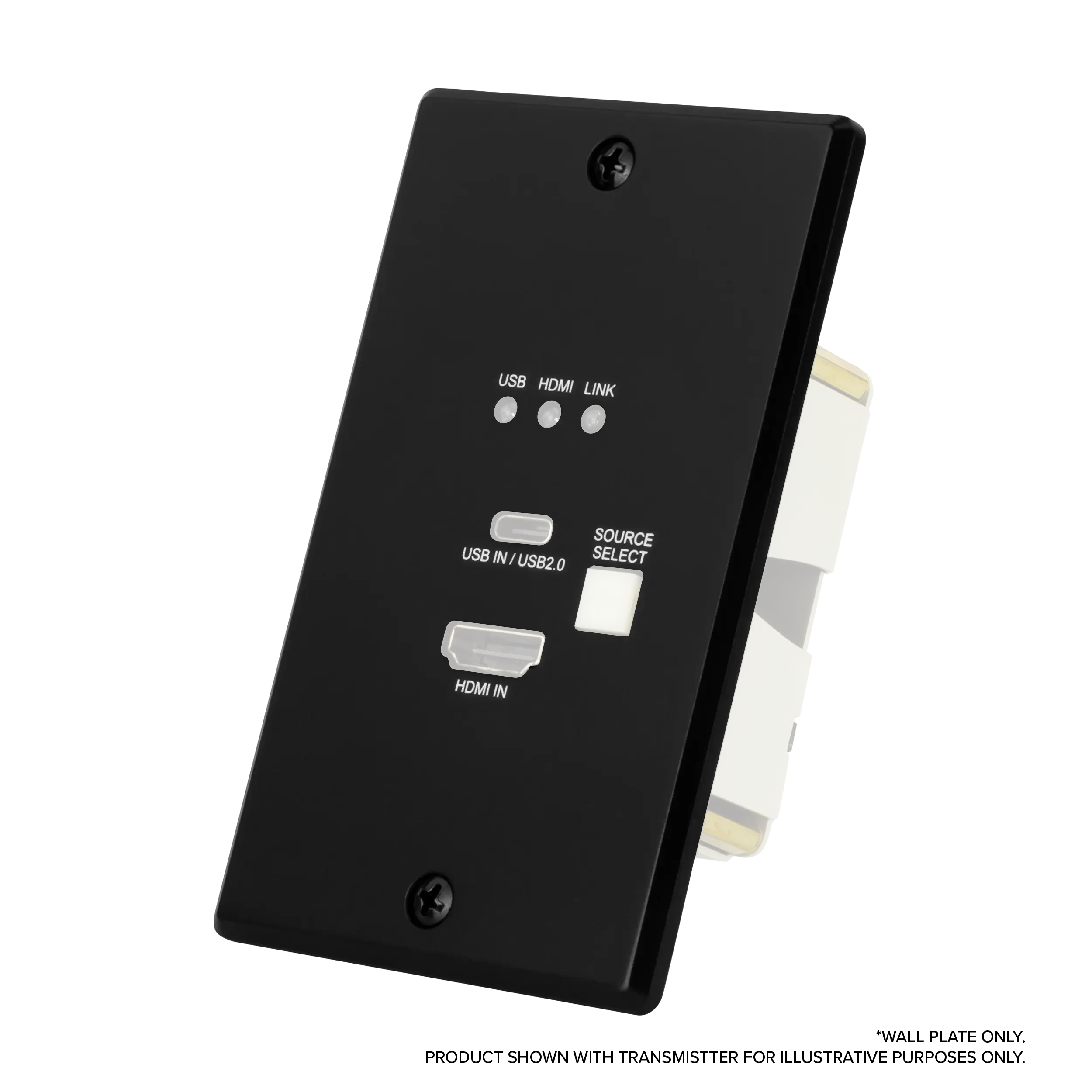

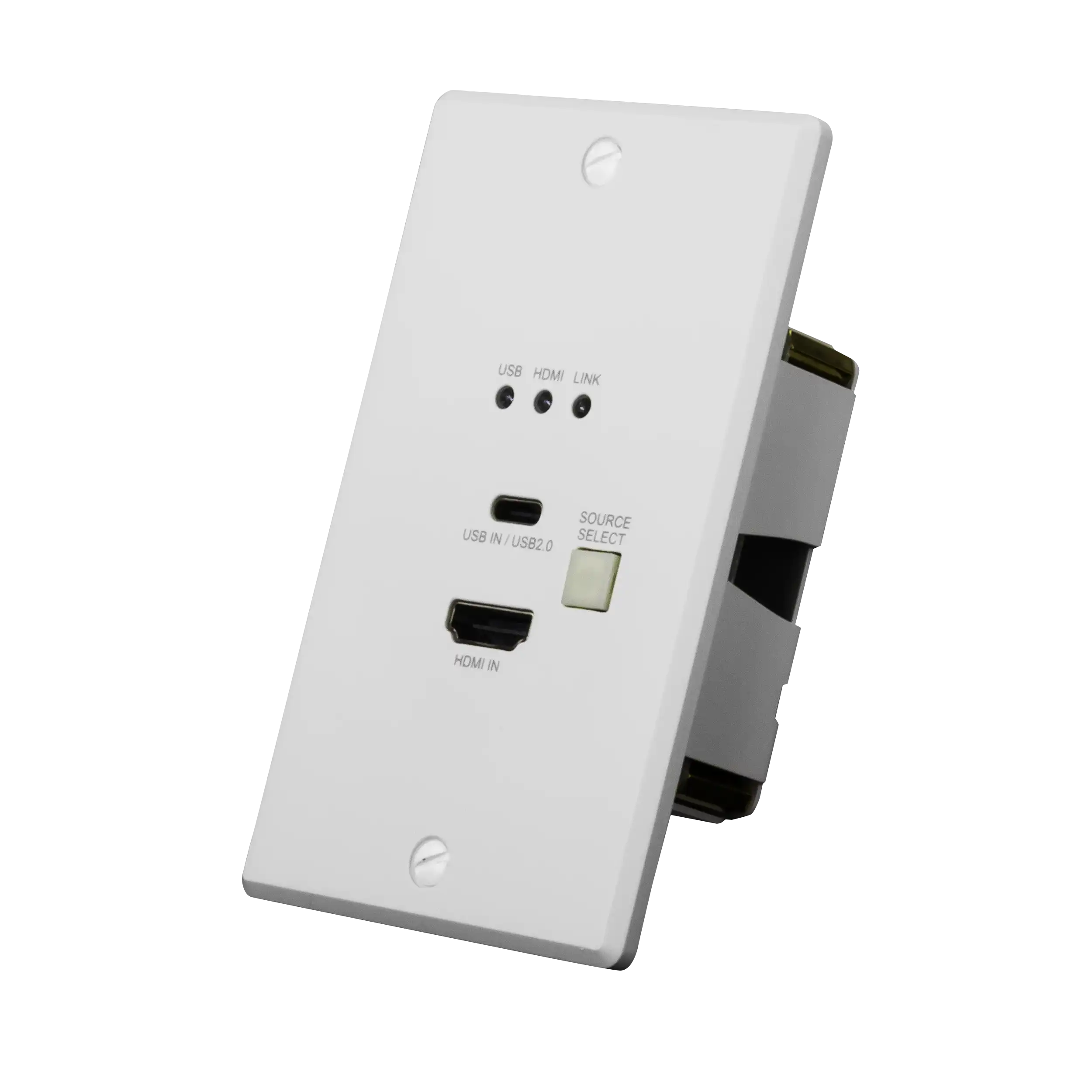

When installed, wall plate excursion from the wall surface is only 13/64 inches (5 millimeters) for an aesthetically sleek, modern look. It is standard-sized at 2.75 inches wide by 4.5 inches high (70 mm x 115 mm). Wall plates are available in high-quality white, black, and stainless steel finishes. (Black and stainless steel are sold separately).

Using Category 6A wiring, 1080p signals are capable of distances as great as 328 ft (100 m), while 4K/60 Hz, 4:2:0, 8-bit signals transmit flawlessly to 229 ft (70 m). Legendary AVPro Edge Invisible Compression Technology (ICT) enables source configurations up to 18 Gbps in bandwidth to transmit successfully.

Conventional PC timings and VESA data rates standard in business and educational environments transmit easily from the AC-CXWP-LPDHU-T.

Designed and constructed to meet military-grade standards, every ConferX product is protected by the AVPro Edge 10-year, no-hassle warranty.

Note: The active device is NOT Decora™ dimensioned and may only be used with an AVPro Edge wall plate.
